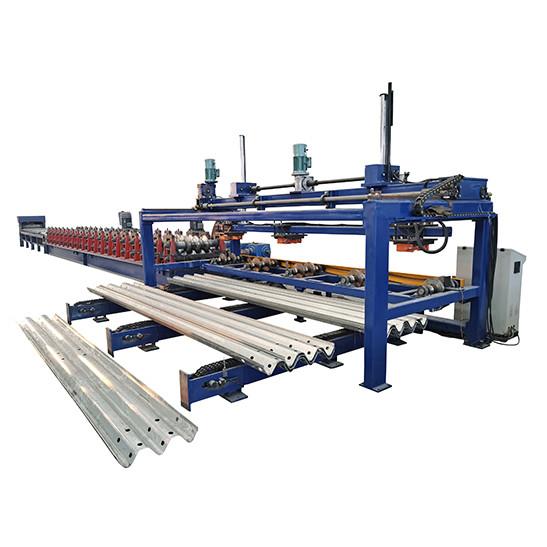

Metal Highway Guardrail Roll Forming Machine Hydraulic systems

Place of Origin : Jiangsu, China

Brand Name : HRF

Price : $50,000.00/pieces 1-1 pieces

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works

Showroom Location : Egypt, Turkey, Italy

Condition : New

Type : Tile Forming Machine

Tile Type : Steel

Use : Step

Production Capacity : 100ft/min

Voltage : 380V

Dimension(L*W*H) : 45x5x3m

Weight : 30 kg

Warranty : 1 Year

Key Selling Points : High Productivity

Rolling thinckness : 2.5-4.4mm

Feeding width : 1220mm

Machinery Test Report : Not Available

Video outgoing-inspection : Not Available

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

After-sales Service Provided : Engineers available to service machinery overseas

Product name : Newest Highway Guardrail Roll Cold Forming Machine

line speed : 100ft/min

forming station : 18

Motor : 11kw

Roller material : 45# Steel Plated

Control system : PLC(imported Brand)

way of drive : chain ,1 inch

Decoiler : manual or hydraulic

name : highway guardrail roll forming machine

Contact Now

Company Profile

Metal Highway Guardrail Roll Forming Machine Hydraulic systems

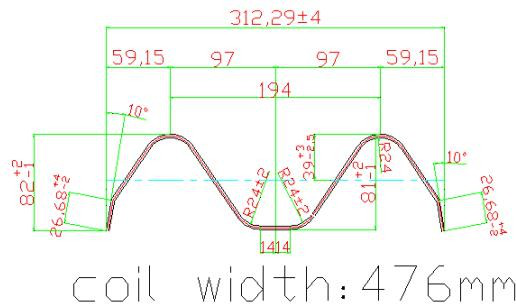

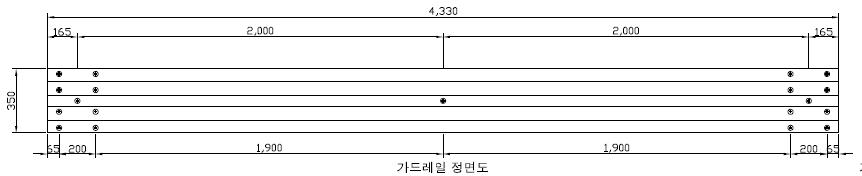

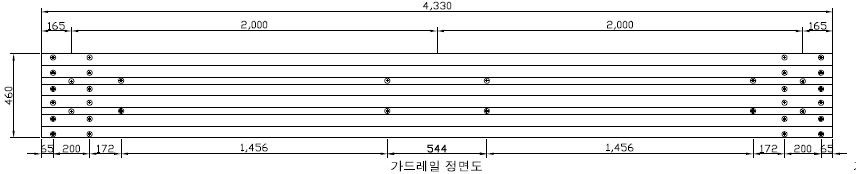

Profile drawing

Production process

10T Coil car→10T hydraulic De-coiler→shovel head,feeding,guiding→9 rolls leveling→servo feeder→holes punching No1,2.3 →hydraulic pre-cut →motorized transmissioning table→roll forming→5m auto-stacker

Product Paramenters

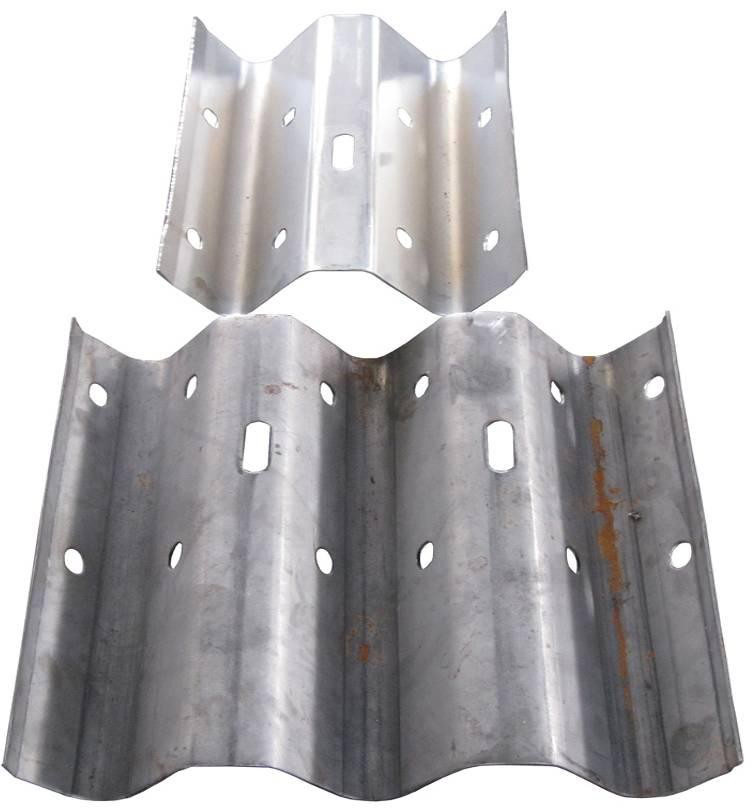

Finished products: 2 waves and 3 waves guardrail forming machine with 2.5-4mm with holes punching

Raw material request:	Q235Mpa hot rolled steel ,black steel or galvanized steel
Material thickness:	2.5mm-4mm
Whole line working speed:	max15m/min( 3 pcs x4320mm per min
Total power:	about 100kw
Input direction:	left to right direction Finished Product information:
Product width:	350mm/460mm
Product height:	69mm
Product length:	4330mm
Product tolerance:	4320mm±1.5mm
Space requirement:	Length 45mxWidth 5m xHeight 3m

Details Images

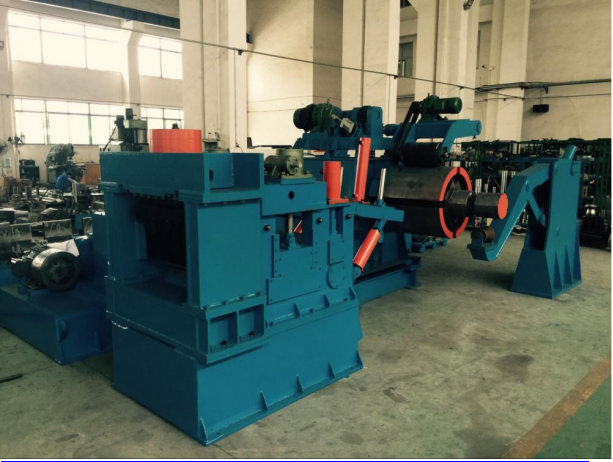

Hydraulic decoiler,coil car and sheet shovel head and leveler machine picture

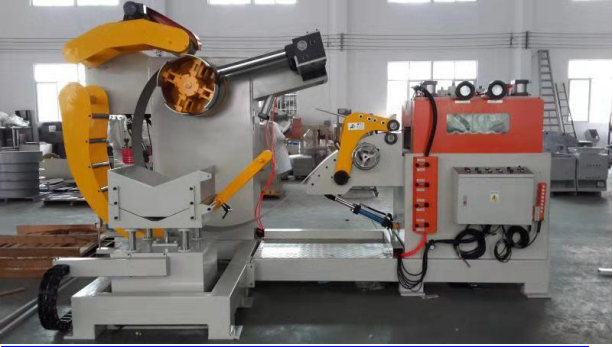

Servo-feeder system

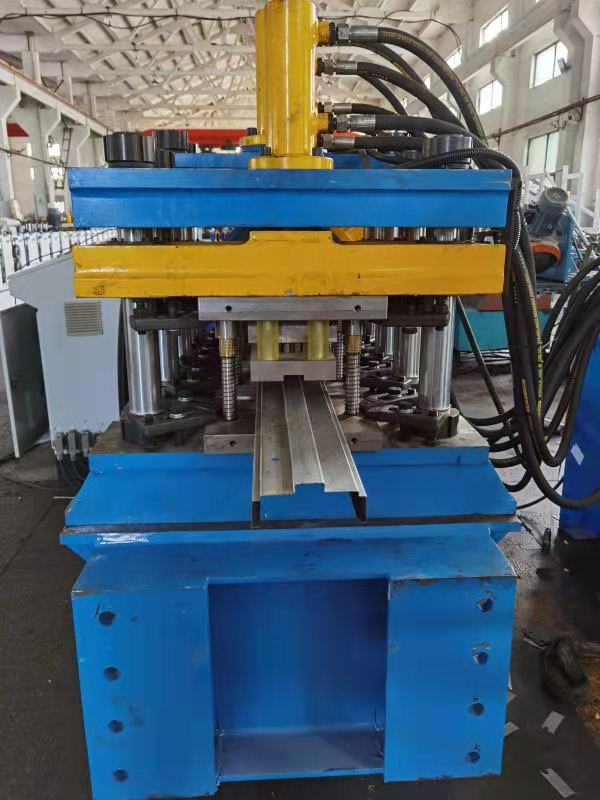

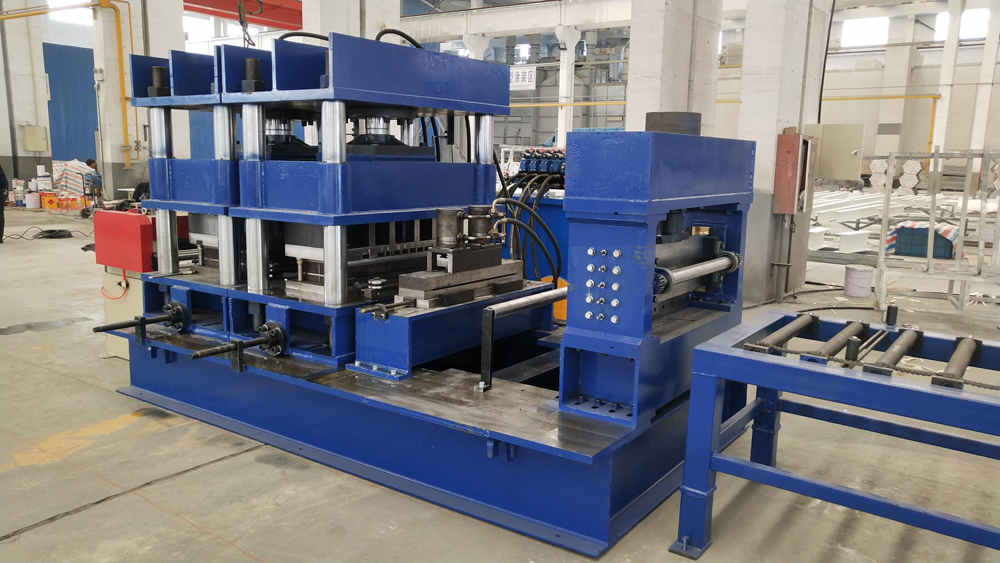

Four Column-type hydraulic punching units and punching moulds

5m motorized transmissioning table

The user just just needs to take off the the last 3 stands to form 2 wave guardrails or add the last 3 stands to form 3 waves guardrails

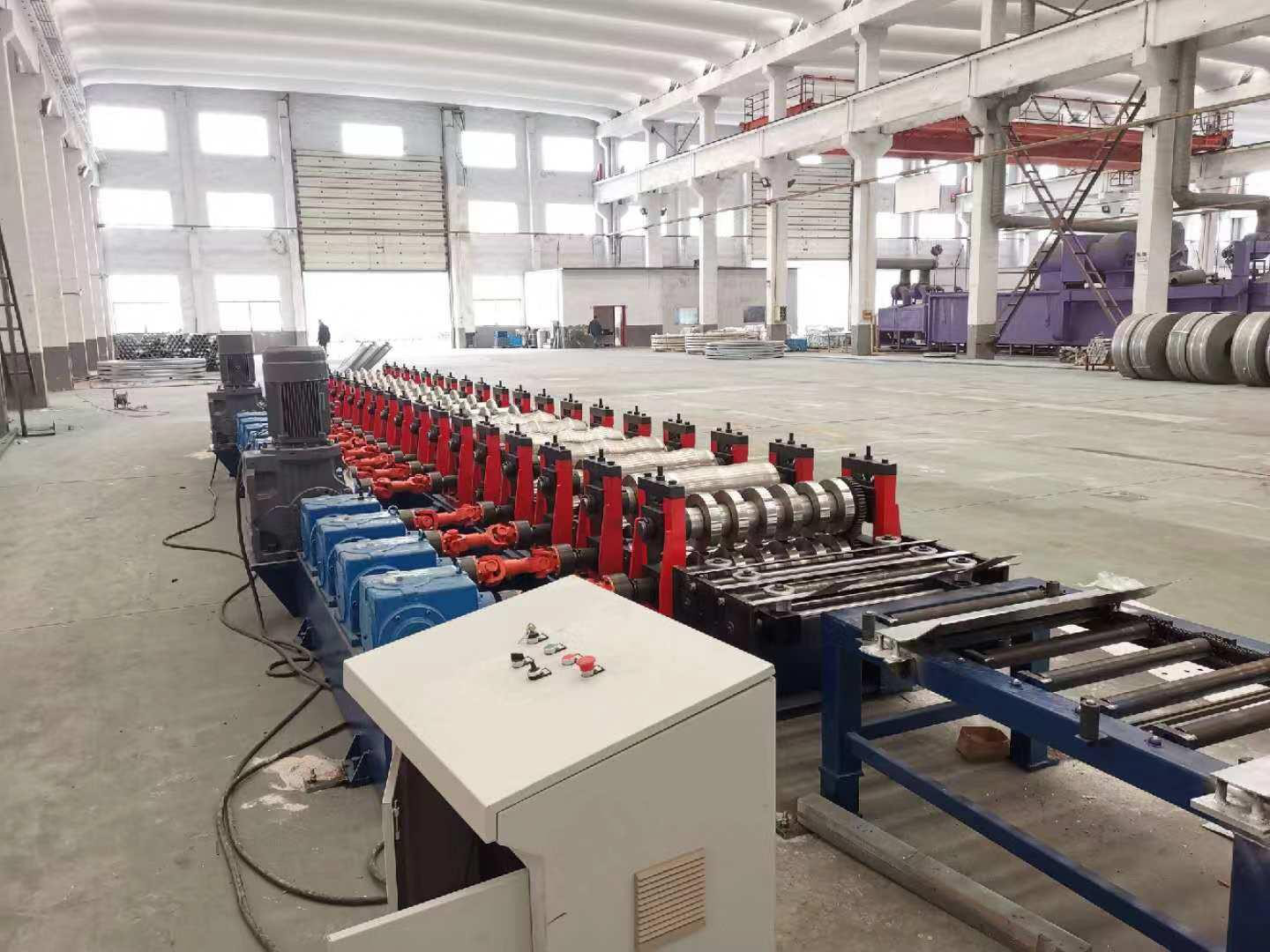

Forged iron stands and gearbox drive

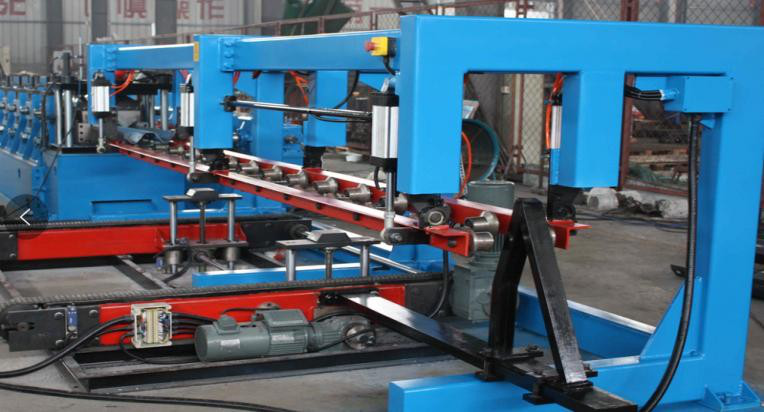

5m Mauto-stacker

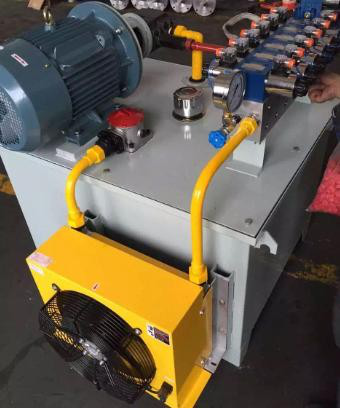

Hydraulic control system

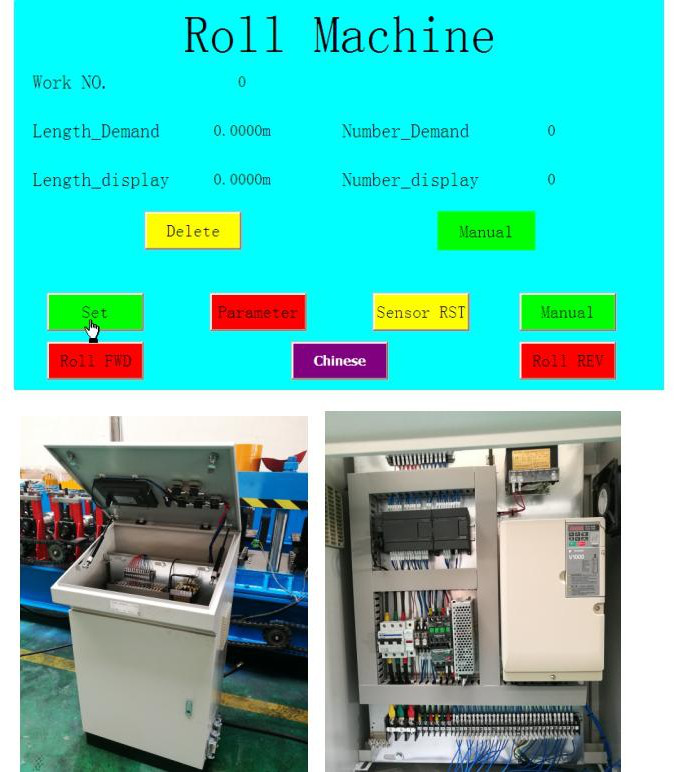

Electrical control system
